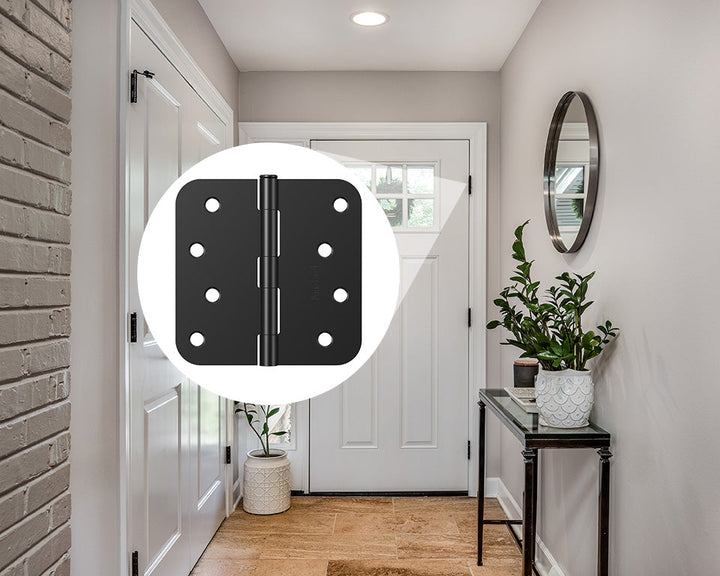

Engineering the Future of Doors: Modern Hinges Explained
Engineering the Future of Modern Doors: A Complete Analysis of Structural Hinges
In modern residential architecture, doors are no longer simple barriers that open and close. They have become structural components, design statements, and engineering challenges—especially as interior designers increasingly favor oversized door slabs, full-height doors, and solid-core constructions. At the heart of these architectural elements lies an often-overlooked but essential component: the door hinge.
While compact in appearance, a hinge assumes the role of an “invisible load-bearing system,” transferring weight, motion, and stress through a compact assembly of metal plates and pivot mechanisms. This article dives deep into the engineering principles that define modern hinges, why the shift toward larger doors has pushed hinge technology to evolve, and how manufacturers—including us at TDC—continue to design more advanced solutions such as 3.5–4 inch door hinges, stainless steel door hinges, double ball bearing door hinges, and custom-finish options for modern homes.
Part I — The Hidden Structural System: Engineering Roles of Door Hinges
1. Foundational Engineering Functions in a Door System
A well-designed hinge performs several simultaneous structural jobs. Although most homeowners rarely notice the hinge, engineers understand that it is the only mechanical connection between the door slab and the stationary frame. Its functions can be broken down into three primary categories.
a. Vertical Load Bearing
A hinge must carry 100% of the static weight of the door. Regardless of whether the door is hollow-core, solid-core, solid wood, engineered composite, or a floor-to-ceiling panel, the hinge shoulders the entire downward gravitational load.
Engineers refer to this as vertical load bearing. Consider:
- A typical hollow-core interior door weighs between 25–40 lbs.
- A modern solid-core door: 60–120 lbs.
- Oversized architectural doors: 150–250+ lbs.
The hinge is therefore a long-term weight-bearing component, expected to support the door’s mass for decades without sagging.
This is why heavy-duty door hinges, reinforced hinge plates, and high-load ball bearing assemblies have become essential for today’s thicker door slabs and denser materials.
b. Pivot Mechanics and Rotation Stability
Beyond carrying weight, the hinge defines the door’s rotation axis. Ideally, a door should open around a stable, friction-optimized center point. Any deviation leads to:
- Door misalignment
- Frame scraping
- Increased closing resistance
- Early structural fatigue
Proper pivot engineering ensures the rotation stays consistent across thousands (and often hundreds of thousands) of cycles.
The pivot must counteract:
- Moment load from door width
- Torsional force from opening force
- Shear stress from repetitive movement
For these reasons, double ball bearing door hinges and three-ball-bearing systems are increasingly used in high-frequency or heavy-load environments.
c. Stability, Balance & Damping Performance
A modern hinge also contributes to:
- Quiet operation (reduced metal friction noise)
- Smooth opening force
- Reduced lateral wobble
- Mitigated impact stress during closing
The incorporation of ball bearings, thicker steel, and advanced surface finishing all contribute to better damping and reduced wear.
Some hinge categories—such as spring door hinges or self-closing cabinet hinges—introduce controlled motion, adding functional benefits like automatic closing or reduced slamming.
2. Why Larger Doors Increase Structural Demands
The contemporary design trend of full-height doors, oversized panels, and solid core doors has completely changed hinge engineering.
a. Increased Door Mass Creates Extreme Static Load
A door that is two times larger often weighs three times more, due to increased density and materials. Traditional hinges—especially plain bearing hinges or thin-gauge steel hinges—simply cannot sustain these loads long-term.
Large doors introduce:
- Exponential weight increase
- Greater downward bending force
- Accelerated bearing fatigue
These issues require hinges built with:
- Thicker hinge leaves
- Hardened stainless steel
- Enlarged bearing chambers
- Higher load rating certifications
b. Moment Load Amplifies the Stress on the Pivot
The wider a door is, the greater the moment load—a rotational force created when weight is applied far from the pivot point.
In engineering terms:
Moment = Force × Distance
Thus, a wider door creates disproportionately higher stress on the hinge pins and bearings.
Oversized doors exert:
- Strong lateral pulling forces
- Higher shear load against hinge screws
- Increased risk of hinge “walking” or door sag
This is why three-ball bearing hinges and heavy-duty stainless steel hinges have become essential for larger modern designs.
c. Higher Rotational Torque Requires Engineering-Grade Hinge Construction
Torque increases drastically when a heavy door is opened, especially at a 90- or 180-degree swing angle. Heavy doors can generate measurable torsional twisting along the hinge knuckle.
To counteract this, hinges must include:
- Thicker gauge steel
- Precision-machined bearings
- Stronger knuckle construction
- Improved lubrication channels
At TDC, we often recommend reinforced 4-inch door hinges with double ball bearing assemblies for any door exceeding 90 lbs.
3. Different Door Types Require Different Hinge Solutions
Architectural diversity means hinge design must adapt to functional, structural, and spatial constraints.
a. Pocket Doors: Side-Load & Lateral Stability
Pocket doors require unique hinge or sliding hardware because:
- Their weight is supported horizontally
- They experience strong lateral forces
- Their concealed track system demands high precision
While traditional hinges are not used, the engineering principles are similar—side loads require more rigid materials and precision bearings.
b. Oversized Interior Doors
These are commonly made of engineered panels or solid wood. They require:
- Heavy-duty hinges
- Stainless steel or reinforced iron construction
- Double or triple ball bearing systems
- High static and dynamic load ratings
These designs are increasingly requested in minimalistic and luxury interiors
c. Full-Height Doors
From floor to ceiling, the height increases:
- Vertical bending moments
- Hinge axial load
- Frame torsion
- Opening torque
Such doors must pair with engineering-grade hinges, often 4” or greater, with thicker leaf plates and reinforced screws.
Table 1 — Door Type and Recommended Hinge Selection
|
Door Type |
Structural Challenge |
Recommended Hinge Type |
|
Hollow-core interior door |
Light load |
Standard 3.5" hinge |
|
Solid-core interior door |
Medium–heavy load |
Double ball bearing hinge |
|
Oversized door (tall/wide) |
High moment force |
Heavy-duty stainless steel hinge |
|
Full-height door |
High vertical bending |
4-inch reinforced hinge, triple bearing |
|
Pocket door |
Lateral track load |
Reinforced sliding system |
|
Fire-rated door |
Heat & stress |
Fire-rated hinge with ball bearings |
Part II — Evolution of Hinges for Modern Large Doors
As architectural design prioritizes bold, oversized aesthetics, hinge technology has advanced significantly.
1. Standard Hinges vs. Heavy-Duty Hinges
Standard Hinges
Traditionally used for hollow-core interior doors. They typically feature:
- 2 mm leaf thickness
- Plain bearing pivot
- Standard carbon steel construction
- 2–3 hinge installation points
These are not designed for high-load applications.
Heavy-Duty Hinges
Modern large doors necessitate:
- Thicker leaf plates (3–4 mm)
- Enlarged hinge barrel
- Reinforced pin-to-leaf welding
- Higher load rating (engineering grade)
- Multiple ball bearings
Heavy-duty hinges also ensure better longevity, quieter movement, and resistance to fatigue over thousands of cycles.
At TDC, we manufacture heavy-duty 4 inch stainless steel door hinges suitable for modern oversized doors, with optional custom finishes to match interior styles.
2. Ball Bearing Hinges vs. Concealed Hinges
Both hinge categories serve different architectural visions, but each addresses mechanical needs differently.
a. Ball Bearing Hinges (Double or Triple Bearing)
Ball bearing hinges are designed to withstand:
- High weight loads
- Frequent opening and closing
- Long-term mechanical fatigue
How ball bearings help:
- Reduce friction
- Prevent metal-on-metal grinding
- Increase hinge lifespan
- Support heavier, solid-core doors
Common applications include:
- Large interior doors
- Commercial settings
- Residential full-height doors
- High-frequency rooms
When customers ask about noise reduction or smoother door movement, we often recommend double ball bearing door hinges at TDC.
b. Concealed Hinges
Concealed hinges are favored in modern minimalist interiors because:
- They remain invisible when the door is closed
- They support clean architectural lines
- They allow adjustable alignment
However, they require:
- Higher mechanical precision
- Stronger internal springs
- More robust metal alloys
- Higher installation accuracy
Concealed hinges are ideal for frameless, ultra-minimalist, full-height interior doors.
3. Why Larger Doors Require Stronger Engineering Parameters
Hinge engineering must match door specifications. Larger doors push several engineering metrics to their limits.
a. Load Rating (Static & Dynamic)
Load rating refers to how much weight a hinge can support without:
- Bending
- Sagging
- Bearing collapse
- Permanent deformation
Oversized doors demand high load rating heavy-duty hinges.
b. Cycle Testing Standards
Heavy doors require hinges tested for:
- 100,000+ cycles minimum
- Fatigue resistance
- Inward and outward torsion tests
- Long-term lubrication stability
Manufactured properly, a hinge should last decades.
c. Double vs. Triple Ball Bearing Design
Double ball bearings improve smoothness and durability.
Triple ball bearings offer superior load handling, especially for thicker doors.
d. Material Engineering: Thick Steel vs. Reinforced Stainless Steel
Thick carbon steel offers rigidity for structural loads.
Reinforced stainless steel provides corrosion resistance, deformation resistance, and longevity.
At TDC, we produce hinges in iron and stainless steel, depending on customer needs, with multiple custom finish options such as matte black, brushed nickel, antique bronze, and more.
Part III — Collaborative Design: The Future of Doors and Hinges
Design and hardware must work together. As doors grow larger, heavier, and visually minimal, hinges must evolve to match.
1. The Architectural Shift Toward Engineering-Grade Hardware
Consumers want:
- Full-height panels
- Slim frames
- Oversized doors that make a statement
- Quiet, smooth opening
These desires require hinges that are:
- Structurally reinforced
- Quiet under load
- Capable of handling high moment torque
- Resistant to environmental changes
Modern hinges function more like engineered mechanical systems than simple pieces of hardware.
2. Aesthetic Minimalism Drives Demand for Concealed Hinges & Heavy-Duty Hinges
Architects now prefer:
- Flush door systems
- Hidden hardware
- Seamless transitions between spaces
This makes concealed hinges, minimalist stainless steel hinges, and precision ball bearing hinges essential.
3. What the Future Holds: Material & Engineering Trends
Future hinge designs will likely improve in:
- Load rating capacity
- Noise reduction via upgraded bearings
- Corrosion resistance using advanced stainless-steel alloys
- Durability with improved fatigue-resistant pin designs
- Precision concealed systems that support even larger doors
At TDC, we are continually developing solutions across hinge categories such as 3.5–4 inch door hinges, double ball bearing hinges, and custom-finish heavy-duty designs to meet the demands of evolving architectural trends.
Table 2 — Key Engineering Metrics for Modern Door Hinges
|
Engineering Metric |
Standard Hinge |
Heavy-Duty / Ball Bearing Hinge |
|
Load Rating |
Low |
High to Very High |
|
Leaf Thickness |
2 mm |
3–4 mm reinforced |
|
Bearings |
None / Plain |
Double or Triple Bearings |
|
Material |
Iron / Mild Steel |
Reinforced Iron or Stainless Steel |
|
Durability |
Moderate |
Superior |
|
Suitable Door Types |
Hollow-core |
Solid-core, oversized, full-height |
|
Noise Level |
Higher friction |
Smooth and quiet |
|
Finish Options |
Limited |
Custom, premium finishes |
TDC Product Integration (Natural Placement)
As a manufacturer specializing in hinge solutions, we at TDC provide a wide range of hinge categories, including:
- 3.5–4 inch door hinges for residential doors
- Stainless steel door hinges for long-term corrosion resistance
- Double ball bearing door hinges for heavy doors
- Spring door hinges for automatic closing
- Self-closing cabinet hinges for kitchen and furniture applications
Our materials include iron and stainless steel, and we support custom finishes and personalized specifications depending on your project requirements.
For those interested in technical details, custom solutions, or bulk procurement, we encourage you to follow and subscribe to our official website and social media channels for updates on pricing, product releases, and engineering guides.
Conclusion
Modern door hinges have evolved far beyond their historical simplicity. As architectural doors become larger and heavier—and as aesthetic preferences lean toward minimalism—the hinge has taken on the role of an engineering-grade structural system.
With advances in ball bearings, reinforced stainless steel, load rating improvements, and concealed hinge design, today’s hinges are built to withstand greater mechanical stress while still delivering elegance, quiet operation, and long-term durability.
Whether you’re a builder, architect, homeowner, or hardware distributor, understanding these engineering principles ensures better decisions, longer-lasting installations, and a more refined door experience.
At TDC, we take pride in supplying hinges that meet these modern demands with precision, reliability, and customizable design.
