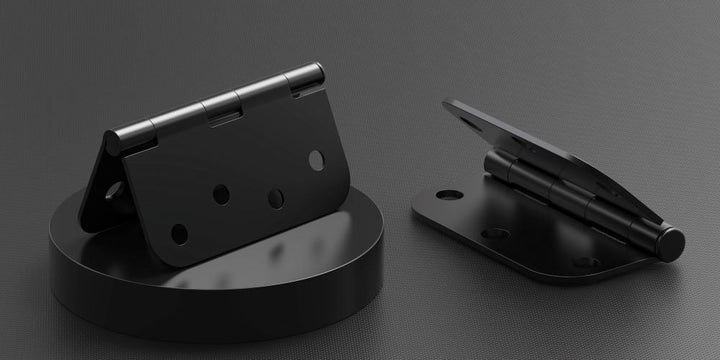

Avoid Common Door Hinge Installation Mistakes: A Practical Guide
Proper door hinge installation is one of the most critical steps in ensuring the smooth operation, safety, and longevity of commercial door systems. Whether you are working with 4 inch door hinges, stainless steel door hinges, or self-closing door hinges, installation errors can lead to issues ranging from minor door binding to severe structural damage.
In this comprehensive guide, we cover:
Common installation mistakes and their consequences
Detailed door gap and hinge spacing calibration
Periodic inspection and maintenance practices
Professional tools to improve installation efficiency
How high-quality TDC door hinges can simplify your work
By following these guidelines, you can significantly reduce maintenance costs, extend the life of your doors, and ensure safe operation.
1. The Core Role of Hinges in Commercial Door Systems
Hinges are the backbone of any door system. They are responsible for bearing the door’s weight while ensuring smooth, consistent operation. Correct installation has far-reaching effects on:
Safety: A misaligned hinge may cause the door to swing unexpectedly or jam, posing a safety risk to personnel and equipment.
Durability: Properly installed hinges distribute weight evenly, preventing excessive wear on the door frame, door leaf, and hinges themselves.
Operational Smoothness: Accurate alignment ensures effortless opening and closing, reducing friction, noise, and energy required to operate the door.
Common installation errors can dramatically increase long-term costs and risk:
|
Installation Error |
Risk |
Maintenance Cost Implication |
|
Misaligned hinges |
Door binding, uneven wear |
Increased repair frequency |
|
Incorrect screw selection |
Loosening, detachment |
Frequent re-tightening or replacement |
|
Skipped pre-drilling |
Weak anchoring |
Door sagging, hinge damage |
We at TDC have extensive experience designing high-quality stainless steel door hinges that prioritize durability, precise alignment, and customizable finishes, making professional installation easier and more reliable.
2. Common Installation Mistakes
2.1 Misaligned Hinges
Misalignment is one of the most frequent installation errors. It occurs when hinges are not perfectly vertical or evenly spaced, resulting in:
Doors twisting or binding
Uneven stress distribution across the frame
Premature wear of hinges and door edges
Real-world example: In a commercial office building, misaligned hinges caused repeated door jamming, which led to frame damage and costly repairs. Correcting the alignment using a laser level resolved the issue and restored smooth operation.
2.2 Incorrect Screw Specifications and Material
Choosing the wrong screws is a subtle but critical error:
Short screws may fail to anchor the hinge properly.
Soft metal screws corrode easily, especially in high-humidity environments.
Mismatched materials between hinge and screws can lead to galvanic corrosion.
TDC tip: Always match screw material to hinge material. For stainless steel hinges, stainless steel screws are ideal to ensure durability and corrosion resistance.
2.3 Missing or Incorrectly Sized Spacers
Spacers maintain uniform door gaps, essential for smooth operation. Common mistakes include:
Omitting spacers entirely, causing door friction
Using incorrect spacer thickness, leading to uneven gaps
Solution: Use precision-measured spacers during installation. TDC door hinges are compatible with standard spacer kits for accurate gap control.
2.4 Skipped Pre-Drilling or Misaligned Pilot Holes
Failing to pre-drill or misaligning holes reduces load capacity and can crack the door material. Key considerations:
Use a drill bit slightly smaller than the screw diameter
Ensure pilot holes are perfectly aligned vertically using a laser level
Avoid forcing screws into undrilled wood or composite doors
2.5 Inadequate Load Calculation
Each door type requires a calculated number of hinges:
Heavy doors require 4 inch or larger stainless steel hinges
Self-closing doors must have hinges capable of supporting the closing mechanism
Table: Hinge Quantity Recommendation by Door Weight
|
Door Weight |
Recommended Hinge Type |
Number of Hinges |
|
Up to 30 kg |
4 inch iron or stainless steel |
2 |
|
30–60 kg |
4–4.5 inch stainless steel |
3 |
|
60–100 kg |
Heavy-duty stainless steel |
3–4 |
TDC hinges are engineered for heavy-duty commercial doors, ensuring optimal performance even under frequent use.
3. Door Gap and Hinge Spacing Calibration
Correct door-to-frame clearance is essential for smooth operation and long-term durability.
Standard Door Gap Guidelines:
Top & bottom: 3–5 mm
Sides: 2–4 mm
Calibration Steps:
Measure and mark hinge positions using a tape measure.
Use a laser level to ensure vertical alignment.
Install top hinge first, then bottom hinge, and adjust the middle hinge if needed.
Insert spacers to maintain uniform gaps.
Check operation by opening and closing the door slowly, adjusting as necessary.
Load Distribution Table
|
Hinge Position |
Load Distribution |
Notes |
|
Top |
~50% of vertical load |
Prevents sagging |
|
Middle |
~20% |
Stabilizes motion |
|
Bottom |
~30% |
Prevents bottom binding |
Tips for Friction Issues:
Inspect hinges for proper alignment
Check for warped doors
Adjust or replace spacers if friction persists
4. Periodic Inspection and Maintenance
Maintenance is key to extending hinge life and ensuring consistent door operation.
Inspection Frequency
|
Door Usage |
Recommended Inspection |
|
Light-use interior |
Every 6 months |
|
Heavy-use commercial |
Every 3 months |
|
High-humidity or outdoor |
Every 2–3 months |
Key Inspection Items
Loosening: Tighten screws
Wear: Inspect hinge pin and barrel
Corrosion: Apply rust inhibitor
Noise: Lubricate hinge joints
Lubrication Recommendations:
Silicone spray or lithium grease for smooth operation
Avoid petroleum-based oils on stainless steel to prevent staining
Lubricate once or twice a year, or as needed
TDC recommendation: Our stainless steel hinges require minimal maintenance, but periodic lubrication ensures years of trouble-free use.
5. Professional Tools to Improve Installation Efficiency
Using professional tools ensures accurate and efficient installation:
|
Tool |
Purpose |
Tips |
|
Laser level |
Accurate hinge alignment |
Calibrate before use |
|
Electric screwdriver |
Faster installation |
Use torque setting for consistency |
|
Spacer set |
Maintain uniform gaps |
Use TDC compatible spacers |
|
Torque wrench |
Standardized screw tightness |
Prevents over-tightening |
Installation Efficiency Example: Using a laser level and electric screwdriver can reduce installation time by 30% while improving hinge alignment accuracy.
At TDC, our customizable hinges are designed to work seamlessly with these professional tools, making installation faster and more precise.
6. Selecting High-Quality Hinges
Choosing the right material and finish is critical for longevity and performance:
|
Material |
Best Use Case |
Durability |
Maintenance Tip |
|
Iron |
Interior doors |
Moderate |
Apply anti-rust coating |
|
Stainless steel |
Outdoor or humid areas |
High |
Lubricate 1–2x/year |
|
Brass |
Luxury interiors |
Medium |
Clean with non-abrasive cloth |
TDC door hinges are available in multiple finishes, including brushed nickel, antique bronze, and polished stainless steel. We also support custom finishes and sizes, providing professional solutions for all commercial door needs.
7. Real-World Installation Scenarios
Scenario 1: Office Interior Doors
Issue: Doors were binding due to misaligned 4 inch door hinges.
Solution: Installed TDC stainless steel hinges, calibrated gaps with spacers, and used laser level for alignment.
Result: Smooth, silent operation, minimal wear over 3 years.
Scenario 2: Exterior Heavy-Duty Doors
Issue: Frequent corrosion and sagging on outdoor doors.
Solution: Replaced iron hinges with TDC stainless steel heavy-duty hinges, applied proper lubricants, and tightened screws with torque wrench.
Result: Doors maintained perfect alignment, corrosion-free performance.
8. Summary and Best Practices
Accurate installation ensures safety, durability, and smooth operation.
Use high-quality materials like stainless steel and TDC customizable hinges.
Calibrate door gaps using precise tools and spacers.
Inspect and maintain hinges regularly to prevent wear and failure.
Professional tools improve efficiency, reduce errors, and enhance longevity.
By following these guidelines and integrating TDC door hinges, you can achieve reliable, long-lasting performance in any commercial or residential door system.
